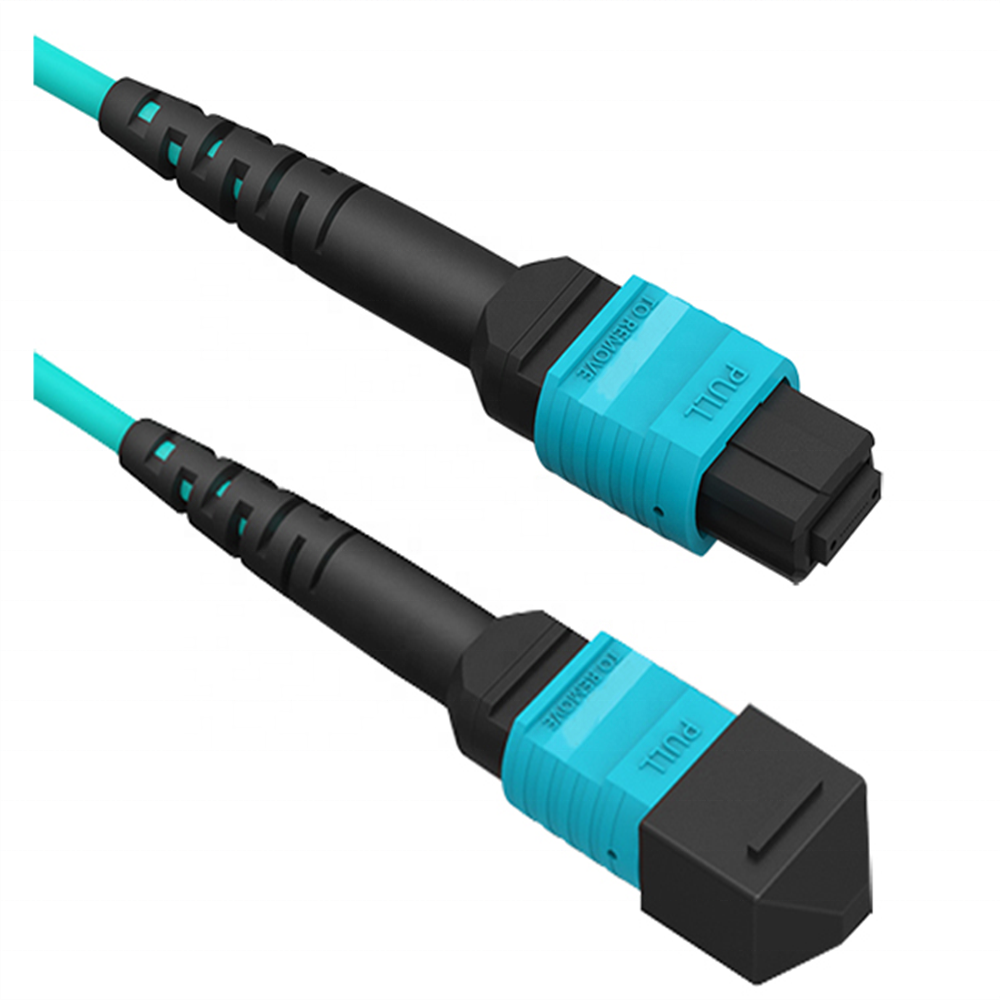

8 12 24 cores singlemode Multimode MTP MPO connector fiber optic patch cord

Place of Origin : Hubei, China

Brand Name : OEM

Model Number : MPO fiber optic patch cord

Product name : MPO fiber optic patch cord

Application : FTTH FTTB FTTX Network

Certification : CE RoHS FCC

Fiber Type : singlemode OS2 Multimode OM3 MTP MPO patch Cable

Connector : MTP,MPO , MTP (Elite),MPO (Elite)

Return Loss : >=60dB (SM), >=30 dB(MM

Color : Yellow, Aqua , Erika Violet,Purple

Insertion loss : ≤0.35dB (SM), ≤0.30 dB (MM)

Operating temperature : 20 ~+70

Material : Riser (OFNR), Plenum (OFNP), LSZH

Supply Ability : 100000 Piece/Pieces per Month MPO fiber optic patch cord

Packaging Details : PE bag in Carton

Port : Shenzhen port Shanghai port

MOQ : 1 Piece/Pieces

Price : $9.00 - $280.00 / Pieces

Contact Now

Product display

Our company Develops and provides full range of fiber optic patch cords, jumpers pigtails, welcome to check us for more.

Professional MTP MPO workers, adanved equipment imported from Janpan and Germany, we produce high standard quality MTP MPO products.

The MPO Cable is designed for 40G (12 cores) and 100G (24 cores) optics direct connection and high-density data center applications. FIBERCAN Fiber optic cable meets RoHS and UL compliant, and all fiber patch cables connectors are 100% optically tested for insertion loss to ensure nice quality.

Features :

1; The connectors are comply with IEC, Telcordia-GR-326-Core standards;

2; Different size & color boot option;

3; Low insertion loss; High return loss;

4; 100% interferometer measurement available;

Connector type	MPO
Fiber type	Multimode, single mode
Operating wavelength range	850nm 1330nm
Test wavelength	850nm 1330nm
End grinding type	APC UPC
End grinding type	MPO:typical refers to ≤0.4dB, the maximum index ≤0.75dB
Return loss	d≥50dB
Suitable for cable type	MPO: ribbon or bundled cable
Repeatability	≤0.1dB
Exchangeability	≤0.2dB
Durability	500 times of plugging and unplugging, typical index ≤0.2dB
Vertical tension	≥120N (except 0.9 sheath) or customer specified
Stored temperature	-40 to +85
Operating temperature	-20 to +70
